Published Jul 1. 2010 - 6 years ago

Chinos!

A baitfish pattern made of synthetic fibers, a tough fly with nice movement designed for any predator which feeds on smaller fish.

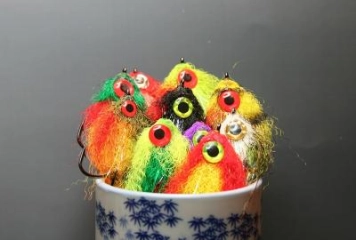

A cupful - Chinos by the dozen
A cupful of Chinos
Carlos Heinsohn

This is a baitfish pattern made of synthetic fibers, a tough fly with nice movement designed for any predator which feeds on smaller fish. This is an easy tying fly once you understand the way it is constructed, and with a little practice it becomes almost automatic and you will tie it in a few minutes.

The Chino arrives at its third generation after some functional and esthetic changes given after many years of fishing and a lot of fish landed. When I started thinking about the way the fly should be tied, I was looking for a fly that really imitates the shape of a baitfish, mostly in the head that should be wide enough with no bulky knots in front of it.
The earliest Chinos were something difficult to tie because I used to tie the body fibers on the hook pointing forward all the way through the eye of the hook and then pulled back to be glued with epoxy to build a wide head (All the saltwater baitfish patterns we see today weren’t invented yet) . Not all the Chinos of the first generation were as finely finished as the one shown.

Four years ago the Chino grows to its second generation when I saw that I could tie the synthetic fibers backwards keeping a wide shape, and I could tie the head with other fibers than the body ones.

This third generation of Chinos have some innovations on proportions, on the weight, in the way of tying the head and some basic conceptions that has been improving it through the years.

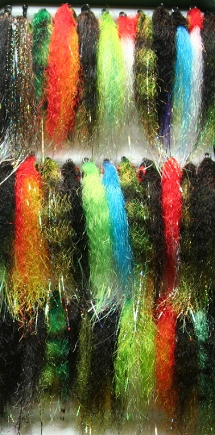

Third generation - The third generation of Chinos has some innovations on proportions, weight and tying the head

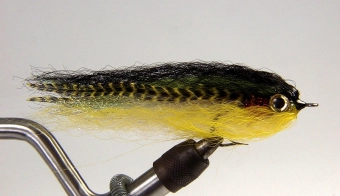

First generation - Not all the Chinos of the first generation were as finely finished as this one.

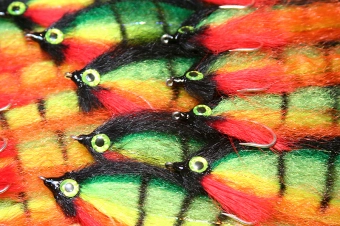

Second generation - With the synthetic fibers tied backwards to keep a wide shape
Generations
Carlos Heinsohn

It is helpful before beginning to tie to take note of three things we should remember if we want to get the fly as we want it:

1.

The Chino is a fly made of wavy synthetic hair, tied by layers over and under the hook shank. The profile of the fly should be high, tapered and flat on the sides.

2.

Pick less hair than you want for every bunch of synthetic hair, otherwise the fly will not keep its shape. Bunches should be really tapered at the base and very thin at the end.

3.

Any fly made of synthetic hair will not change its profile in the water, so the shape of the finished fly on your vise will be the same of the fly when you fish it. If you tie the Chino with thick synthetic hair bunches the fly will keep a square profile instead of a minnow shape.

We are going to tie a relatively large Chino of approximately 12 cm. on red and yellow.

Red and yellow - The fly shown uses red and yellow as the predominant colors
Red and yellow
Carlos Heinsohn
Chinos
Pattern type:
Streamer
Originator:
Carlos Heinsohn
Materials:
Hook
Gamakatsu B10S # 2/0 or any short shank hook
Thread
Danville Yellow Flat Waxed Nylon
Body
Red and Yellow Fuzzy Fiber
Flash
Pearl Flashabou and Pearl Krystal Flash
Head
Red Fuzzy Fiber
Eyes
Bright Chartreuse Molded eyes
Glue
Cyanoacrylate (Zap-a-Gap) and 6 min. Epoxy
Difficulty:
Medium

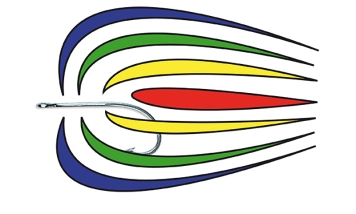

Layers - The fly is tied with layers over and under the hook shank
The principle
Carlos Heinsohn

THE RECIPE

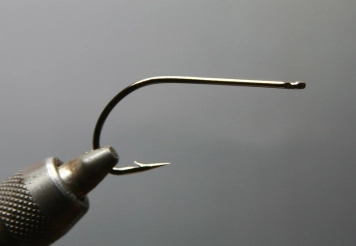

STEP 1: THE HOOK

For this moderate big Chino we are going to tie on a Gamakatsu B10S #2/0, a short shank hook. It can be tied also on standard shank saltwater hooks like Mustad 34007, but being careful of start tying the tail at the end of the shank so it will not tangle with the gap while fishing. Start tying the thread behind the hook eye and wrap a thread base back to the end of the shank.

Step 1 - the hook -
Step 1
Carlos Heinsohn

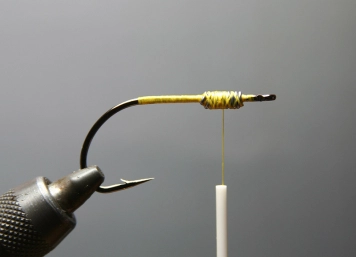

STEP 2: LEAD WIRE

For a better swimming action wrap a strip of lead wire on the shank leaving a free space of ½ cm against the eye of the hook. Apply a small drop of fast drying Cyanoacrylate (Zap a Gap) over the thread.

Step 2 - lead wire -
Step 2
Carlos Heinsohn

STEP 3: TAIL

Start tying the tail at the end of the shank, a bunch of yellow fibers which determines the length of the fly, 2 ½ to 3 times the length of the hook. In this case we use Fuzzy Fiber that is quite light and gives great volume to the body. Tie three or four flashabou strands over and under the tail surpassing it for one centimeter. Do the same with a few strands of Krystal Flash.

Step 3 - tail -
Step 3
Carlos Heinsohn

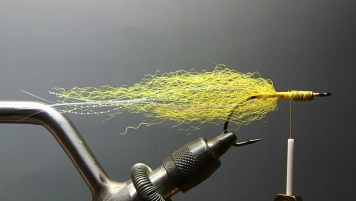

STEP 4: FIRST PART OF THE BODY

Just in front of the point the tail is attached, tie a bunch of yellow fibers on the top and a bunch of yellow fibers on the bottom.

Step 4 - first part of the body -
Step 4
Carlos Heinsohn

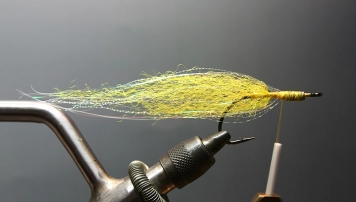

STEP 5: MORE FLASH

Tie three or four Flashabou strands over and under the fibers of step 5. Do the same with Krystal Flash.

Step 5 - more flash -
Step 5
Carlos Heinsohn

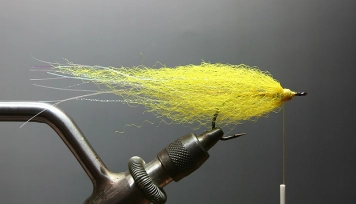

STEP 6: SECOND PART OF THE BODY

Just in front of that point, tie a bunch of yellow fibers over and a bunch of yellow fibers under the shank.

Step 6 - second part of the body -
Step 6
Carlos Heinsohn

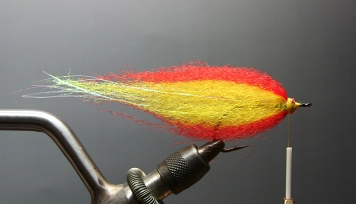

STEP 7: THIRD PART OF THE BODY

Now we are at ½ cm to the hook eye. Over the same knot, tie a bunch of red fibers on top and a bunch of red fibers below.

Step 7 - third part of the body -
Step 7
Carlos Heinsohn

STEP 8: HIDE THE THREAD

In the same point, tie a short thin bunch of yellow fibers at each side of the shank to hide thread and knots. Put a small drop of Cyanoacrylate to this knot to secure the whole body. Now we have finished the body, so we can see the main shape of the fly before starting to tie the head.

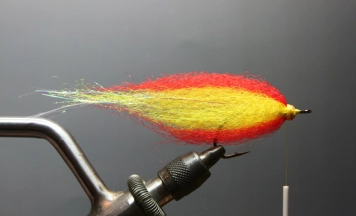

Step 8 - hide the thread -
Step 8
Carlos Heinsohn

STEP 9: UPPER HEAD

Cut a 2 cm. long bunch of red fibers and tie them over the shank on the free space we leave against the eye of the hook. Assure it with two or three wraps of thread.

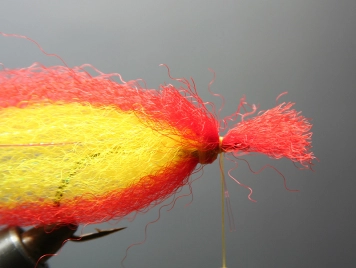

Step 9 - upper head -
Step 9
Carlos Heinsohn

STEP 10: LOWER HEAD

Cut a 2 cm. long bunch of red fibers and tie them under the shank on the free space we leave against the eye of the hook. Fasten it with two or three wraps of thread.

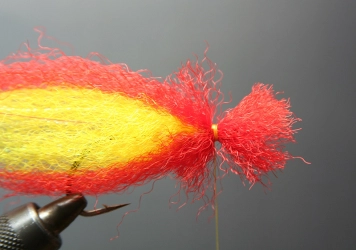

Step 10 - lower head -
Step 10
Carlos Heinsohn

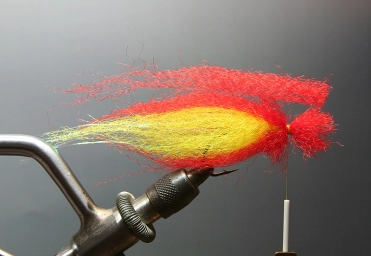

STEP 11: TOPPING

On top of the “open” head, tie a long bunch of red fibers as shown on step 7. Secure it with four tight turns of thread.

Step 11 - topping -

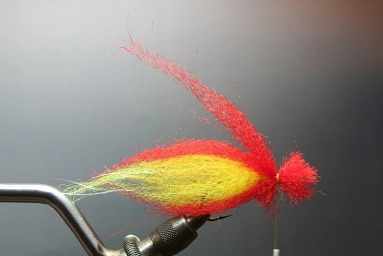

Step 11.2 - topping tied in -
Step 11
Carlos Heinsohn

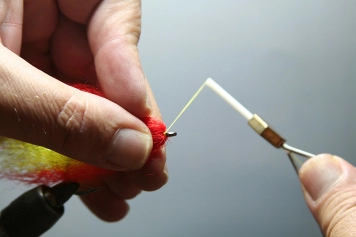

STEP 12: THREAD TO THE EYE

With your left hand grab the fibers that were tied forward and pull them backwards. Pass the thread forward and secure it with two or three turns over the shank just at the eye of the hook. You can make a whip finish knot, but two overhand knots are enough due to the Cyanoacrylate you are going to set on the head.

Step 12 - thread to the eye -
Step 12
Carlos Heinsohn

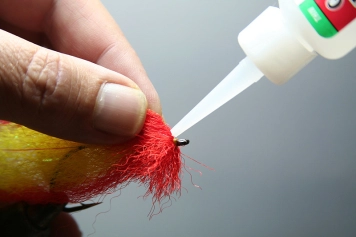

STEP 13: FINISHED UPPER HEAD

With your left hand’s index and thumb grab the fibers of the upper side of the head, taking care of give it a flat shape. Apply a drop of CA in the point where they turn backwards, being careful to not glue the lower part of the head or your fingers. Keep the head pressed for 5 seconds while the glue is cured.

Step 13 - finish upper head -
Step 13
Carlos Heinsohn

STEP 14: FINISHED LOWER HEAD

Turn the fly upside down and repeat the previous step with the remaining fibers on the bottom of the fly.

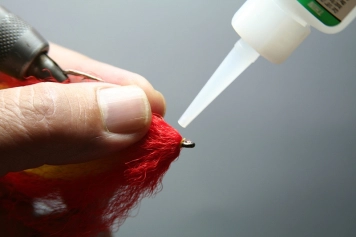

Step 14 - finish lower head -
Step 14
Carlos Heinsohn

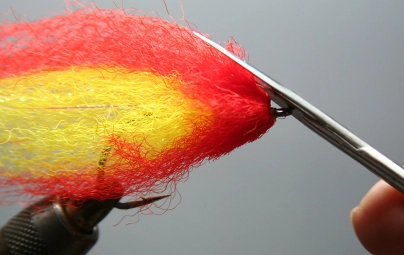

STEP 15: TRIM HEAD

Trim any excess of fibers with serrated scissors to give the head the shape you want. At this time the fly already has its final form.

Step 15.1 - trim head -

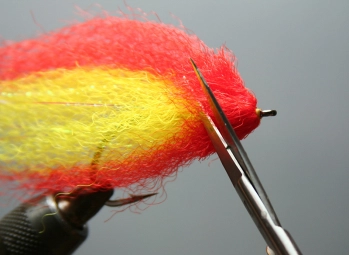

Step 15.2 - trim head -
Step 15
Carlos Heinsohn

STEP 16: SEXY EYES

Put a small amount of 5 minute clear epoxy to the sides of the head, and when it begins to harden, place the eyes and press them with your fingers or a little clamp until epoxy us fully cured.

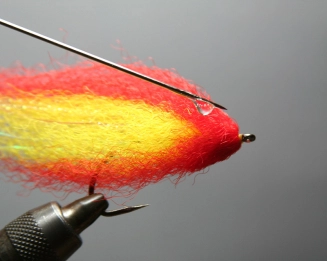

Step 16.1 - epoxy -

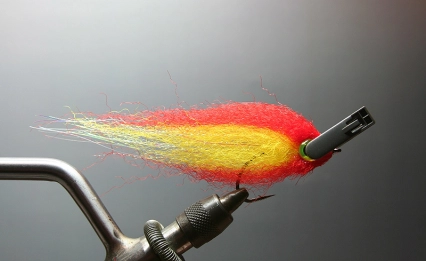

Step 16.2 - eyes -
Step 16
Carlos Heinsohn

And the fly is finished!

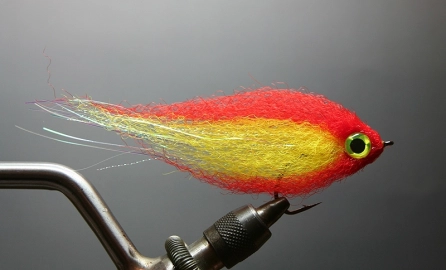

Step 17 - finished fly -

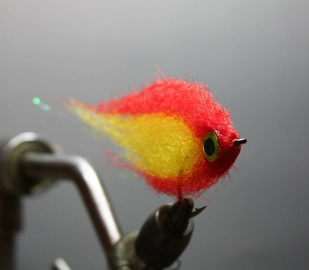

Flat hight profile - Notice the shape of the fly
Finished fly
Carlos Heinsohn
Watch the shape! - If the fly opens and becomes "square" you used too much material
Clean before painting -
Shape and stripes
Carlos Heinsohn

TIP: WATCH THE SHAPE

If your chino has a square profile once you finish it, it is because the layers you tied were too thick. You can obtain the right profile of the fly by carefully cutting each color section, but first you must “open” the fly to identify each bunch. Remember to keep layers smoothly tapered.

ANOTHER TIP: TAKE A BATH BEFORE MAKEUP

If you are going to paint lines or dots on your fly, you can bring the fly “a massage" under the tap water flow so the fibers of the different layers get organized at their final position and then you can paint sharp and well defined stripes.

Pink -
Bright and sparly -
Natural -
Colorful -
Variations
Carlos Heinsohn
Different sizes - From 8 to 5/0
Hundreds of variations - There are hundreds of variations. Try different color combinations and different sizes for your favorite fish.
Sizes and colors
Carlos Heinsohn

Chinos can imitate almost any baitfish just matching colors or adding more sparkle material. It is also a good atractor pattern if you tie it on other color variations.

It has been widely tested on saltwater inshore fishing, tropical rivers and lakes with success. Here with an 18 lb. Peacock Bass on a huge “firetiger” Chino.

You can tie Chinos of every size, from a #8 to a #5/0 hook.

There are hundreds of variations. Try different color combinations and different sizes for your favorite fish.

Enjoy it!

Peacock bass - The author with an 18 lbs. peacock bass caught on a Chinos

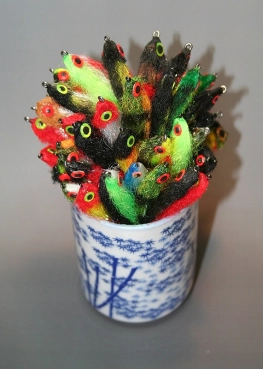

Ready to rock - A fresh selection of Chinos waiting for some fun
Ready!
Carlos Heinsohn
