Published Apr 1. 1996 - 27 years ago
Updated or edited Jan 22. 2017

Twined or furled leaders

How to make a great furled leader using the ancient method of rope making.

Introduction

By Martin Joergensen

The following description on how to make your own twined leaders was given to me by Henk Verhaar from Holland. Henk's description fascinated me so much, that I made the first set of three leaders already the first night after having received the description.
Since then and since these pages were made, I've produced several more leaders, and I've had several reactions from other people who have tried - all of the positive. People are generally pleased with the suppleness of these leaders and their ability to turn over very smooth and easily. They do so more than any other type of leader I have tried. try casting one with your hand, if you ever make one. Amazing...
Making the board was very easy and understanding the process too. I used the exact process as described by Henk for the first leader, but soon made my own variations.
Never the less Henk's description still holds up and produces some very fine and inexpensive leaders.
In his book Micropatterns, Darrel martin mentions furled leaders, which are a lot similar to Henk's twined ones.

Picture of finished twined leader
Henk Verhaar's twined leader. This one is made from Maxima which is a dark and fairly stiff line. See a closeup below

Close up of twined leader
Detail of Henk Verhaar's twined or furled leader.

Braided leaders

I always preferred braided leader butts over hand-tied leaders, let alone knot-less tapered leaders.
While hand-tied leaders are reasonably cheap, if home-made, and can be tailor-made to fit all possible circumstances, I didn't care too much for tying up all those barrel knots, especially while on-stream, plus there was this time that I generated too many wind knots in my leader to really enjoy FFing ;-)
Every now and again (well, more like every hour or so) the wind knot would end up in the butt section of the leader, and would invariably be much too tight to even consider untangling it, leaving only two options: rebuild the leader from the clipped butt downwards while on the stream or scrapping it altogether and tying on yet another leader. The braided leader butt didn't have these drawbacks -- they offered, to me at least, better presentations, more ease of use, and almost all knots in the braid are simple to unravel.
Their one main drawback was their price. I had of course heard of the tricks one could play with the level braided mono lines, to build a taper in them by removing strands at different lengths, but this seemed to me to be more trouble than it was worth. So I continued buying tapered braided butts and trying to be careful with them.

Twined

Then one day there was this guy at our monthly FF club meeting showing us how to create simple, very effective twined leader butts, that could be home-made with a few inexpensive supplies, had all the advantages of braided butts, and could be custom tapered and modified to be at least at versatile as knotted leaders; even more, since this design allowed for interesting things as creating sinking leaders by adding copper wire.
Another advantage of the twined butts is that they additionally act as shock absorbers, since the twist acts like a coiled spring -- thus obviating the need for e.g. a piece of powergum in the instances where this is called for (to be honest, there's also a drawback to this recoil effect: when you get your fly stuck in a tree or other object some distance away and have to pull the line to tear it free, you 'load the spring' of the butt quite heavily, and when the fly comes loose, the coil will unwind rapidly, severely twisting your leader tippet -- this can, however, almost always be undone easily and without lasting ill effects).
Suffice it to say, that after I procured the materials to make these twined leader butts, and made a few to acquaintance myself with the procedure, I haven't used anything else since!

So how does one make such a twined leader butt? I'll start out by describing the needed materials, then describe the basic procedure for a standard butt, ending with an indication of all the possible customizations.
The board

Materials needed

Most important is what I'll call the leader board. This basically is a 2.4 m long, 25 cm wide wooden board with a smaller
board overhanging the top, three hooks attached to the underside of the overhang, and a number of plugs, attached to the board, beneath the two outermost hooks. See figures 1 and 2 for general idea of setup and for some standard measurements.
The board can be homemade from available scrap wood having the correct dimensions -- attachment of the overhang is with dowels and glue. The plugs are cut sections from a round stick (like a broomstick) about 2 cm in diameter, and are attached to the board with dowels. Use the distances shown in figure 2 to start with. They can be either glued down, or just stuck into holes in the board -- this makes it possible to alter the custom taper of the butt by changing the plugs to a different set of holes. More on this later. Draw a line across the board at approximately 2.00 m down from the hooks (or 90% of the distance from the hooks to the lowest plugs).

Weights

Next item is some heavy lead weights with attachment loops. I use surf casting lead weights with anchors (these are normally bent outwards to assist anchoring of the weight to the bottom, but in our case are kept straight so as to facilitate turning the weight), and a heavy wire snap as attachment loop, although a heavy paperclip could be adjusted for this purpose also. See also figure 6.
The weight

Other stuff

Some superglue will be necessary to seal the two ends -- again, more on this later -- and finally a roll of mono to make the leader butt. Yes that's right, you need just ONE roll, one strength of mono, to make an entire butt. I usually buy this in 100m rolls. 100 m (110 yards) will make you three complete butts. For trout and other light line leaders I use 12/00 mm dia. mono (this is similar to 6X). For light saltwater work I may step this up to 15/00 (5X) and for heavy pike streamer leaders even 18/00 (4X). But to get started, you can get by with just one 100 m roll of 6X.

Procedure

The basic idea is to make two leader halves, twist these separately, then tie them together and let them untwist -- if done properly, the untwisting of the separate strands wil twist the entire leader in the opposite direction. This is not unlike what happens when making rope in a rope-making factory (there should be a specific English name for such a place, but I'm not familiar with it -- in Dutch it would be a 'Lijnbaan' or 'Touwslagerij').
The process

Making a furled leader

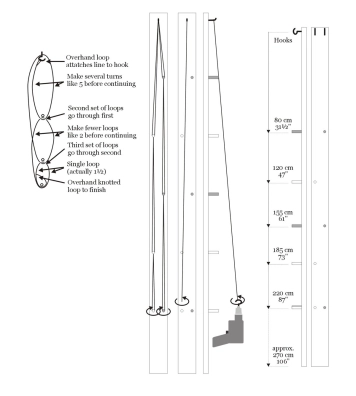

The two halves are similar. You should be studying figure 3 for a schematic representation of the procedure

  1. Take the roll of monofilament and make a simple overhand loop in the free end of the mono.
  2. Attach the loop to one of the outer hooks on the overhang.
  3. Bring the mono around the uppermost plug and then back around the hook, all the while keeping a certain amount of tension on the mono.
  4. Bring it around 5 1/2 times, thus creating 5 1/2 loops between the hook and the plug (or 11 strands of mono).
  5. The last strand (the last 'half loop') doesn't go around the uppermost plug but continues down to the second plug, goes around, and then back up to the upper plug.
  6. Bring it BEHIND the 5 strands of mono forming one side of the first set of loops, then bring forward through the loop, and down, so that it now is linked to the upper set of loops, on the UNDERSIDE of the plug.
  7. Make 2 1/2 loops (or 5 strands) this way, then continue to the lower plug.
  8. Make 1 1/2 loop here, in the same way described for the second set of loops, then make an overhand loop in the mono, so that we can attach the last 1/2 loop to the plug. You now have a set of interconnected loops, sitting on the plugs.
  9. Cut the mono, just after the knot. All this should have been done under a slight but constant tension.
  10. Check all the loops for evenness and even tension. Then make the second half in the same way.

Twisting
Twining

Twisting

You now have the two halves sitting as sets of connected loops on the leader board. Refer to figure 4 for this part of the procedure. Attach a lead weight to each of the lower sets of loops, by means of the paperclip attachment. Then gently slide the sets of loops off the plugs, starting at the lower plugs and working upwards. Now grab one of the lead weights by the anchors and start twisting it clockwise, as seen from below, until it is 10 % shorter than it was, using the line drawn across the board as a reference.
MAKE ABSOLUTELY SURE THAT DURING THE TWISTING, TENSION IS MAINTAINED ON THE HALF LEADER, OTHERWISE LET UNWIND AND START AGAIN. THIS IS ESSENTIAL!

Fasten the lead weight to the board, by means of a rubber band or pin and twist the second set of loops, by means of the second lead weight, IN THE SAME DIRECTION. THIS IS ALSO ESSENTIAL! Make it the same length as the first one and attach the lead weight to the board.

Twining

Now with the two lower ends firmly attached transfer the two top end loops, one by one, and very carefully, to the middle hook. Use e.g. a heavy darning needle, or a splicing needle for this. With the two halves transferred to the middle hook, transfer the 'paperclip' of one of the lead weights to the small end loop of the other half leader, then remove the second 'paperclip' and transfer the lead weight from this 'paperclip' to the one attached to both leader halves. Now detach the bottom ends of the leader from the board, and place the board so that the leader will hang down undisturbed. You'll notice that it'll start to twist 'back' resulting in a twined leader.
Wait until the lead weights stop spinning and come to a full rest. Treat the upper and lower loops with superglue to seal the two halves together. Detach the lead weights from the leader and the leader from the hook and shake a few times to remove residual twist strain.

The large top loop can be attached directly to any loop system on the end of the fly line. The small tippet end loop can be used in a number of different ways. My personal favorite is to attach a short length of 1X mono, looped on both ends, to the small loop, with a loop-to-loop hitch. Then a long length of, say, 3X is attached with a loop-to-loop hitch to the 1X loop, and the rest of the tippet (5X, 5X-6X, 5X-6X-7X) is built up with normal knots. You're now ready to make your first cast with your new twined leader butt!

Variations

By Martin Joergensen

There's three basic variations:

  1. You can vary monofilament strength (and characteristics of course) to get heavier and stiffer or lighter and more supple leaders. Anything heavier than 3X will however be too stiff to allow even twisting, while anything lighter than 7X will be too fragile to handle (at least for my clumsy hands...).
  2. You can change the strength AND the steepness of the taper also by varying the number of loops, or strands in the different parts of the leader butt. My basic description gives a 7' butt with a taper going from 22 - 16 - 10 - 8 - 6 strands, equivalent in weight, when using 6X mono, to 56/00 - 48/00 - 38/00 - 34/00 - 29/00 mm. Experimentation with steepness is limited (almost) only by your imagination, BUT you'd be hard pressed finding a way to make the final section less than 6 strands...
  3. And finally, you can vary the distances between the plugs, influencing the places in the butt where the transitions are located. However, the given locations are known to work.

Furled leader board, new edition
The method and the board
Martin Joergensen

I tried using the weights for making the twined leaders as described by Henk Verhaar, but soon got tired of spinning. In stead I started using a hand held cable free drill, and that actually worked like a charm. I stuck a hook in the drill and grabbed the lower loops of the leader with this hook and drilled away. A minute for each half was suitable (it's a slow drill).
After doing this, I used Henk's description to finish the leader, but actually thought of using the drill to twine the strands too. The advantage of the drill is that the whole process can be done with the board lying down and that (almost) no manual work has to be done.

Number of strands

I also experimented with the number of strands and thickness of the line. I used 0.18 (4X) line for my first leaders and was quite pleased with the result.
My last variation was in not using superglue (I didn't have any and I generally don't like gluing line). I just caught the loops with a thicker strand of monofile, and attached the leader to a loop on my fly line with the help of this strand. After attachment to the loop at the end of my fly line I just removed the strand of mono. The joint is smooth and effective. At the business end I used a Trilene knot to attach the tippet right away. This is not as good as I'd like, but will work until something better comes up.
The leaders are indeed very good: they stretch very fine but still have a delicate movement. They come cheap -- I made three from a spool of monofile that cost DKK 40.- (US$ 8.-). That would normally buy me one braided leader here in Denmark.

Latest version

My latest variation on Henk's leaders is on length and placement of the plugs in relation to each other. I did a bit of spreadsheeting, and drew some curves. My final leader formula is as follows:
The plugs have been moved a bit. This doesn't have the big effect, but when using my formula it produces a smoother taper. The single plugs or rows are set as follows:

  1. Hooks
  2. 80 cm
  3. 130 cm
  4. 160 cm
  5. 188 cm
  6. 220 cm

The hooks and the 220 centimeter plugs go for both sides, while the rest interchange between the sides (80/160 on one side, 130/188 on the other). You should definitely experiment with this and work out your personal favorite formula.

Salt water leader

For my general purpose salt water leader I use 0.23 (2X) Berkly Trilene line which is thick but very soft. I make 2½ turns on top 1½ turn in the middle section an 1 turn on the lower.
The single turn is made by tying the tag end to the lower section of the middle loops in stead of to the bottom plugs. This produces a nicely tapered leader with a fine tip of four strands. I attach a section of 0.26 (1X) to the tip of the twined leader if I want a longer tippet. If not I use a 50 cm (1½') piece of 0.23 (2X) Drennan Double Strength as a tippet.
This setup works like a charm for my 6-7-8 wt. salt water setup with almost any fly from size 10 to 2.
All'n'all a great type of leaders.

One strand method

You can make the whole leader from one single strand (mono, tying thread, Kevlar or whatever) by starting at one butt peg with an overhand loop (making this large - like half the distance between the pegs - will make the butt even heavier), do the first leg as you usually would, decreasing the number of loops and finally ending at the tip peg. But in stead of tying off here with a new overhand knot, you simply continue to the other leg, increasing the number of loops for each set of pegs and finally ending up at the other butt peg where you tie off the string with a new overhand loop.
You now need to spin the two legs individually from the butt end (since they are connected at the tip) and then put them together and unwind them before catching the two butt loops and either tying them or gluing them together to keep the leader from unraveling. Tie a tippet to the tip loop before unhooking it, because it closes very tightly when unhooked., Alternatively you can glue it to keep it open. This method gives fewer knots in the tip and allows for some very delicate two-strand tips if you want.

Comments

I know what you mean...

I know what you mean. As you say it is mostly cosmetic although if the loose coil gets frayed it could eventually start unravelling.

Try being more uniform when forming the loops and also apply a fraction more tension when winding.

i have one problem i...

i have one problem in making furled leaders. After i twist each of the two halves of the leader they are very tight and smooth. when i twist them together i often find little single strand loops at the point where the three loop line ties into the five loop line and the one loop ties into the three loop. It does not affect the line but is unsightly and would like to know how to eliminate this problem. thanks

To prevent leader re...

To prevent leader recoiling & tangling after being snagged (second last para above) splice in one full length of braided or fused superline. I use 4lb bs Berkely Fireline. There is almost zero stretch in this line.

how to make the stri...

how to make the strike indicator for furled leader?

you mentioned copper wire......

Somewhere at the top of this article is mentioned creating weighted leaders by adding copper wire. Where would one add that in? Is there another article elsewhere where this is described? Thanks in advance!

Martin Joergensen's picture

Copper wire...

Justin,

The copper wire idea is highly experimental, and I have tried using it for the leaders, but it breaks very easily and also adds unwanted stiffness to the leader. I simply took a length or two of thin wire (from an electrical transformer) and laid is along the two legs before untwisting them. Then the copper wire twisted in nicely. But even though it did work, the leaders didn't last for long before the wire oxidized and as said: it was quite stiff too.

I think using a thin fluorocarbon mono for the leaders would be a better alternative to get something sinking... even though it of course sinks much more slowly than a copper wire.

Martin

Furled leader...

I also make them with 6/0 tying thread for dry fly fishing. I use a micro ring at the end and an integrated loop at the butt. Mostly olive, sometimes with brown for more "camo",haha. With a long tippet the trout don't seem to mind. These leaders turn over beautifully and float all day when treated with Mucillin. And zero memory.

A nice solution I found...

A nice solution I found to connect tippet to tip of furled leader is to trim off any uneven bits and tie on an Albright Knot, using a length of mono or fluoro tippet material which has 2 parts: the first ties in along the tip of the furled leader, the second around the butt of the tippet with the tippet tapered to the center of the tip of the leader. (This terminal line can be your final tippet or a length of other tippet material like a shock tippet for pike.)

Michael's picture

In english the term ...

In english the term for a rope making factory is "cordage." Thank you for authoring what is a true seed article on furling leaders.

Met vriendelijke groet,

Michael Lieffering

F-Stein, I only just...

F-Stein, I only just now saw your post. My article is delimited to salt water application, and since writing it, I have used 4 # florocarbon. It could be said to be complicated, but most of the complication is semantics. One a jib is made, it is faster than a twisted leader than some folks suggest. There are many differences. The furled leader has no knots, and a smooth step down. Twisted leaders usually have more knots, and abrupt step downs since the lines are doubled and knotted. I'd be pleased to learn how you make them. I am: Bob Brown, buttonwoodbob@earthlink.net

Martin Joergensen's picture

Anonymous, I leav...

Anonymous,

I leave all knots in there as they are. Yes, they can be seen and felt, but do no harm. there really is no way of removing them as far as I can see.

Martin

Do you do any thing ...

Do you do any thing with the original overhand knots once the leader is tied I note on my ones you can see and feel them

Hi I'm getting into...

Hi I'm getting into furled leaders. Please confirm for me the peg spacing above is as follows. 2 & 4 on one side of the board, 3 & 5 on t'other? Similarly, with the leader calc series, how do I figure out which pegs go where ? I get most of the measurements. but there seems to be a difference between the strands and the 5.5/2.5/1.5 this allows for three pegs yet there are five strand lengths Much appreciated.

Gino, did you notice...

Gino, did you notice that they aren't talking about silk, they're talking about monofilimant?

Dear Henk...

Dear Henk: Is it possible to build the furled leader with different thread weights such as 3/0 for the butt of the leader, 6/0 for the mid sections, and 8/0 for the tippets. And, how would I go about doing that. Thank you..

I wish to know how t...

I wish to know how to maintain tention on the loops whilst anchoring the overhand loop to the last plug. I also want to know is this overhand loop included in the twisting process in other words is it removed from the last plug and passed through the weighted paper clip with the other loops and twisted. also interested as to wether the overhand knot (the actual knot) has any effect on the end result of the twisted leader. any comments appreciated

kind regards Richard

can you please provi...

can you please provide more details of how to braid in a loop once you have your furled leader?

thank you

it is not very clear...

it is not very clear to me how to put tension on the half leader?
thanks in advance

Great article. I u...

Great article.
I used to use twisted butts before tapered braids came out and I can't wait to make my own. By the way rope is twisted on a "Rope Walk".

Best Regards,

Ian

Martin Joergensen's picture

Don, It's regular...

Don,

It's regular fishing line. I buy bulk too, and I like the Trilene for its suppleness and good price tag.

Martin

Martin, Is the 0.23...

Martin,
Is the 0.23 (2X) Berkly Trilene line tippet or just regualr mono fishing line. If it is fishing line what pound test would it be, maybe 2lb? I would like to buy it in bulk rather than 30 yard spools.
Thanks.

If you want to see t...

If you want to see the process in pictures, See: (I wasn't allowed to post the URL, ??) but if you go to Midcurrent.com and the archives you'll find the article. A Google search using my moniker, Buttonwood Bob will turn it up, also.
I use 4 pound P-Line's floro-clear. All the qualities of florocarbon, its a copolymer, and costs a third the price of florocarbon. Note that I encourage everyone to make them, and no one to buy or sell them at $15 a pop.

Brilliant article. I...

Brilliant article. I was searching for a set of knotted leader setups and found this by accident. An hour or so later (including the walk to a hardware store to buy an 8 foot length of PAR) and with the help of a glued up son, we had our first tapered leader. Simplicity itself thanks!!
Mark and Jamie

Try Shorb loops for ...

Try Shorb loops for finishing your leader. Google Skip Shorb for info.

Use Fluorocarbon(exp...

Use Fluorocarbon(expensive) for a sinker and "Berkely Fireline" fused superline(even more expensive) for a floater. There is a clearish one available now although I have not used it yet. Use old material. It does not matter how many knots it has incorporated in it. My latest leaders have been made with the very fine mono thread available on 100yd spools from haberdashery supplies. Cost about $2 per spool and will make several leaders.

I have thought of ma...

I have thought of making Furled Leaders for a long time now. Yesterday I decided, today is the day (or as an Italian Flyfisherman would say it, "Carpe Diem")! In about 1/2 an hour I built up the rig as diagrammed so nicely by Martin, followed his directions and made my first Furled Leader in another half an hour. It really was that simple. I don't know now why I ever waited so long to make the first one. This afternoon I'll make up a longer one and try it out tomorrow on my favorite river nearby and let you know how I like it.

Thank you Martin for all your efforts in writing all these detailed instructions and diagrams. It is actually VERY easy once you actually decide to make one.

this was an absolute...

this was an absolutely super article. thanks very much

your way of making f...

your way of making furled leaders is a bit complicated,don't you think? I was making furled leaders with my father since childhood (I am 62) Let me also point out that there is not a LOOP TO LOOP connection and the silk HAS TO BE TREATED in order to use it. If you are kind enough to email me your address, I'll be very happy to share what I know on the subject. Ciao4now -Gino Laghi

Ian Warrilow ...

Hi , this might be a long shot but I’m looking to get in touch with a mr Ian Warrilow who made a comment on this post please.
I bought a used 2 piece fly rod with his name and date the rod was built on it in 92 . It’s a beautiful rod that he built but would like some more information on the rod .

Many thanks
Spencer

awesome...

I have wanted to try these furled leaders, after 20 years of being frustrated at the store bought leaders(that always need to be stretched straight) - i used the one piece method, looping into the 2nd side, and they work great...more than great. i wish i knew how to do this from the beginning, and this article was very helpful - i could not have guessed that changing to a furled leader would help my casting accuracy this much. It makes me wonder how the factory made extruded leaders ever got popular at all?

.
