Welding your loops

Making loop connections on fly-lines using heat-shrinkable tubing

Hint:
Practice on an old fly line or a cheap line. The first few times you might fail, but when you get the hang of it, its quit easy.

This is only a start-guide. There are many variants of making loops with shrink tubes. Make your own experiments.

Part 1: Standard loops

Below is a step-by-step guides showing how to make welded loops. The method is universal for all coated fly lines and gives strong, small and neat loops, which will glide noiseless through the guides.

Step 1 to 7 is necessary for all.

Step 1

- Insert your fly line into a piece of shrink tube af approx. 6-8 cm (2-3 inches).

Step 1- Insert your fly line into a piece of shrink tube af approx. 6-8 cm (2-3 inches). - Insert your fly line into a piece of shrink tube af approx. 6-8 cm (2-3 inches).
Michael Sørensen

Step 2

- Form a loop on your fly line.

Step 2 - Form a loop on your fly line.  - Form a loop on your fly line.
Michael Sørensen

Step 3

- Insert the tip of the fly line into the shrink tube.

Step 3 - Insert the tip of the fly line into the shrink tube.  - Insert the tip of the fly line into the shrink tube.
Michael Sørensen

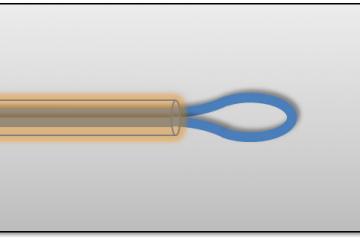

Step 4

- Stop the tip approx. 1-2 cm (1/2 inch) from the edge of the shrink tube. This is important to make sure you don't hit the fly line when heating.

Step 4 - Stop the tip approx. 1-2 cm (1/2 inch) from the edge of the shrink tube. This is important to make sure you don't hit the fly line when heating. - Stop the tip approx. 1-2 cm (1/2 inch) from the edge of the shrink tube. This is important to make sure you don't hit the fly line when heating.<br />
Michael Sørensen

Step 5

- Carefully Apply heat to the shrink tube. Use a lighter og a candle. Apply the heat i short intervals. The coating of the fly line will melt and merge. Repeat this until all the fly line connection is smoothly merged. Don't apply too much heat.

Step 5 - Carefully Apply heat to the shrink tube. Use a lighter og a candle. Apply the heat i short intervals. The coating of the fly line will melt and merge. Repeat this until all the fly line connection is smootly merged. Don't apply too much hea - Carefully Apply heat to the shrink tube. Use a lighter og a candle. Apply the heat i short intervals. The coating of the fly line will melt and merge. Repeat this until all the fly line connection is smootly merged. Don't apply too much heat. It will damage the core of the fly line and you will have to start over.
Michael Sørensen

Step 6

- Wait for the coating of the fly line to cool a bit down. Then you can remove the used shrink tube carefully. The shrink tube is best removed while it is still a little warm.

Step 6 - Wait for the coating of the fly line to cool a bit down. Then you can remove the used shrink tube carefully. The shrink tube is best removed while it is still a little warm. - Wait for the coating of the fly line to cool a bit down. Then you can remove the used shrink tube carefully. The shrink tube is best removed while it is still a little warm.
Michael Sørensen

Step 7

- Congratulation - You have completed your first loop

Step 7 - Congratulation - You have completed your first loop - Congratulation - You have completed your first loop ;-)
Michael Sørensen


Part 2: Tune your loops
.
The following step-by-step focuses on thicker fly lines.

Step 8

- Apply a little heat to your loop (only a few seconds to not damage the core).

Step 8 - Apply a little heat to your loop (only a few seconds to not damage the core). - Apply a little heat to your loop (only a few seconds to not damage the core).
Michael Sørensen

Step 9

- Remove the warm coating from the core.

Step 9 - Remove the warm coating from the core. - Remove the warm coating from the core.
Michael Sørensen

Step 10

- put the loop inside a piece of shrink tube.

Step - 10 put the loop inside a piece of shrink tube. - put the loop inside a piece of shrink tube.
Michael Sørensen

Step 11

- Stop 2-3 cm (1 inch) from the edge og the shrink tubes.

Step 11 - Stop 2-3 cm (1 inch) from the edge og the shrink tubes. - Stop 2-3 cm (1 inch) from the edge og the shrink tubes.
Michael Sørensen

Step 12

- Heat the coating in the point where it turns into loop. Be careful, not to apply too much heat to the core. It is very sensitive to heat.

Step 12 - Heat the coating in the point where it turns into loop. Be careful, not to apply too much heat to the core. It is very sensitive to heat. - Heat the coating in the point where it turns into loop. Be careful, not to apply too much heat to the core. It is very sensitive to heat.
Michael Sørensen

Step 13

- While the coating is still hot, pull carefully in the shrink tube. Pull approx 0,5 cm (1/4 inch) this will smooth the transition to the loop.

Step 13 - While the coating is still hot, pull carefully in the shrink tube. Pull approx 0,5 cm (1/4 inch) this will smoothen the transision to the loop.  - While the coating is still hot, pull carefully in the shrink tube. Pull approx 0,5 cm (1/4 inch) this will smoothen the transision to the loop.
Michael Sørensen

Step 14

- Keep the shrink tube in the pulled position until you are sure the coating is no longer liquid.

Step 14 - Keep the shrink tube in the pulled position until you are sure the coating is no longer liquid.  - Keep the shrink tube in the pulled position until you are sure the coating is no longer liquid.
Michael Sørensen

Step 15

- Remove the shrink tube.

Step 15 - Remove the shrink tube.  - Remove the shrink tube.
Michael Sørensen

Tip 1:
Always carry a lighter, a sharp pair of scissors, a small piece of shrink foil and a lighter with you. With this first aid line kit you can repair the lines, if the loops for some reason breaks.
These loops are not as strong as the real welded loops, but it is great that you can repair a line at the bank.

Tip 2:
Practice on old worn out fly lines before making loops on the ones you are going to use.

Tip 3:
Start making loops on floating lines. Due to the materials, they are much easier to weld than sinking lines.

Tip 4:
The weakest point is where the point of the loop is welded into the line. The durability will be heightened if you make a cut, tapering the line before welding.

Tip 5:
You can color code your lines by adding a small piece of coating in a different color under the shrink foil before welding. It requires some practice but the result is overwhelming.
Of course you can mark the line with markers before welding. However, this will fade over time.

Step 16

- You now have a really nice loop on your fly line ;-) It works even better if you reduce the thickness by removing some of the coating on the fly line, at the point where it is merged, before step 1.

Step 16 - You now have a really nice loop on your fly line ;-) It works even better if you reduce the thickness by removing some of the coating on the fly line, at the point where it is merged, before step 1. - You now have a really nice loop on your fly line.<br />
It works even better if you reduce the thickness by removing some of the coating on the fly line, at the point where it is merged, before step 1.
Michael Sørensen
This guide is made by Michael Sorensen from Innosoft, check out his fish condition calculator app here.
Sections:

Comments

Some tips on schrink tubes:
Size of schrink tubes depend on your flyline size. Make sure that it schrinks into a thinner diameter, than your fly line.
For example, if you have a 1.1 mm fly line (at the loop point), the schrink tube should schrink to approx. 0.8-1.0 mm. A 3.0 mm, 3X (schrinks into 1/3) schrink tube, will schrinks into 1.0 mm. A 2.0 mm, 2X (Schrinks into 1/2) will schrink into 1.0 mm as well. Both sizes works.
Some schrink tubes varies a bit before schrinking. a 3.0 mm can vary +/- 0.5 mm. This doesnt matter much. It normally schrinks into the right diameter anyway.

When you buy schrink tubes, make sure to pick the transparant ones. You have to watch through the schrink tube, to see if it is welding.

When applying heat, be very carefull not to overheat it. It will break the core. Apply heat for a few seconds. then wait and watch for a few seconds. It it welding together? If not, the repeat and repeat. Until it is welded correctly. The heat is a little delayed, so don't heat constantly until it starts welding. It will most likely be too much heat for the core.

When you have the hang of it, make your own experiences. There are many ways to get a nice result.

Find transparant schrink tubes on ebay, seraching for "Shrink tube, Transparent, for fly line loop welding "
