Fly Tying Thread Blues
The old aught system for tying threads (6/0, 8/0, 10/0) isn't really good. So the newer Denier system is much better, right? No, not really!
Those of us who have tied flies for decades have been brought up with a very simple thread system. There was in essence four kinds of thread: really thin thread, 8/0, 6/0 and really thick thread.
You could buy thread called 3/0 (thick) or spiderweb (thin). Monofilament for tying was also available, but in general that was it. And if you were like me you tied with 8/0 and 6/0 95% of the time. 8/0 for small flies and 6/0 for the larger ones.
When I started tying I used Uni, Danville or Gudebrod. That was about it. Some places I could find Pearsall's silk and a few places had Bennechi thread, but certainly not in my average tackle shop.
This very simple landscape has changed significantly during the last decade or so.
If you were like me you tied with 8/0 and 6/0 95% of the time.
Many more threads

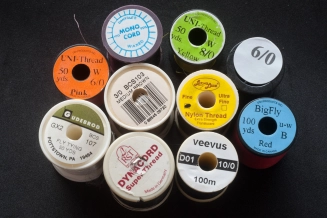

Today there are numerous fly-tying thread brands, and even though the number of manufacturers as such (who run actual thread mills) is definitely both smaller and probably different from the tying thread brands, there's still a much larger selection. Most of the tying thread we see is most likely just spooled and labelled by the "manufacturer".
These tying thread manufacturers use two systems to label the threads, aught and Denier.
A little history
The so called aught system (AKA the ought or naught system) with the numbers 6/0, 8/0, 10/0 and so on, was introduced back in the thirties where Danville started using it as a way of specifying threads. The more zeroes the thinner, so a 000 thread was thicker than a 000000 thread. For the sake of writing, reading and saying the specs, they were written 3/0, 6/0 and 8/0 and pronounced three-aught, six-aught and eight-aught.
The system was adapted by other manufacturers, prevailed and has lived on for decades. It's still in use, but lately (like the last decade), Wapsi's Denier specification has become more and more common, used alongside the aught system or on its own.
Wapsi introduced its UTC thread in the eighties, and unlike the other brands, Wapsi labeled its thread with Denier - 70 UTC and 140 UTC, 70 and 140 Denier respectively.
The thread wasn't commonly available (and can actually still be hard to find in some countries), but Wapsi was a true first mover with regards to actual physical thread specifications in fly tying. Few of the other brands noticed, none followed the lead.
That might not be a big problem for reasons, which you can read below. The current use of the Denier system is not the end of all confusion.

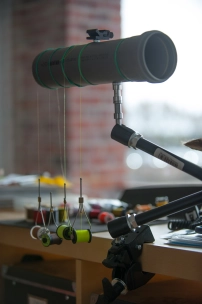

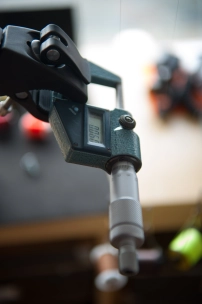

For the sake of getting precise information about thread diameters I bought myself a micrometer with a precision down to 0.001 millimeters or 0.0005 inches, which should be sufficient to precisely measure tying thread, which is rarely thinner than about 0.025 mm or about 0.001".
Now, measuring with a decent precision is one thing. Another is getting a result that's actually true for the thread. There are many aspects to take into consideration:
Softness: thread is soft and the micrometer presses it together, flattening it a bit and seeing a thinner diameter than the actual diameter of the "relaxed" thread. I tried to avoid this by using the thimble on the micrometer in a consistent manner, letting it click once for each measurement, reading the number and then clicking a couple more times to see that the thread would actually compress. 8 out of 10 times it did, telling me that I hadn't compressed the thread too much to give useful results.
Twist: As noted twist influences the diameter of the tread. Most threads are thickest when relaxed and get thinner when you twist or untwist them. Twisting tightens the turns and narrows the diameter, and untwisting makes most threads flatter - thin and wide. Multistrand threads like GSP with many parallel filaments act the opposite way and become, if not thin then extremely flat when relaxed. Measuring such a thread may show it as very, very thin, but at the same time, it's very, very wide. I decided to let the thread I measured untwist to a "natural" degree by hanging a length of thread weighed down by the bobbin and a bobbin-holder and letting it untwist until it was still. This didn't necessarily give the "real" diameter, but gave sufficiently consistent - and in my eyes representative - results for all threads.

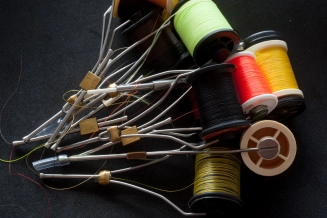

Sampling: As with all measuring, sampling method and statistical evaluation is critical, and I tried being as fair as possible here. Each type of thread was measured on several spools if possible (I only had one of some) and I measured different spots over different lengths spooling off thread to get to fresh material. I measured the thread many places and calculated the average. I ignored (but noted) really strange outliers like a series 0.050, 0,051, 0.055, 0.052, 0.037, 0,055. The 0.037 is either a measuring error or a "bump" or error in the thread, and should be ignored if it was a single occurrence. Many such errors would indicate that the thread was inconsistently made.
The Denier system is a physical standard, and is an expression for the weight in grams of 9,000 meters of thread - equaling 29,500 feet, 9,840 yards, or 5.6 miles.
The reason for this seemingly odd measure is that 9,000 meters of silkworm silk allegedly weighs one gram and has set the base unit - 1 Denier. Spin a thread of 100 strands of silk, and you get a 100 Denier silk thread.
The measure is widely used in the textile industry, which use a number of other specifications too, and the world of Denier, tex, Decitex, filaments, fibers, threads and yarns is a really complex one.
8/0, is 8/0, is 8/0... or is it?
Unfortunately none of the common measurements - aught or Denier - are really useful for specifying fly-tying threads.
The worst one is the aught system, which is basically useless in my opinion.
Just looking at different manufacturer's threads specified using this system reveals its inadequacy. Here's an example using the very common 8/0 polyester threads (see also the table below):
1) UNI's 8/0 is 0.051 millimeters thick and breaks at about 425 grams.
2) Bennechi's 8/0 thread is 0.056 millimeters thick and has a breaking strength of 822 grams.
3) Griffith's 8/0 thread is the same diameter as Bennechi's 0.056 millimeters, but about half the strength, 425 grams.
4) Gudebrod (discontinued) had a diameter of 0.046 millimeters and also broke at app. 425 grams.
5) Veevus 8/0 thread is 0.059 mm and has a breaking strength of "over 1 kg", more than 1000 grams.
If we include 8/0 threads made from nylon and GSP, it just blurs the image even more:
6) Montana Fly Co's 8/0 nylon thread is 0.036 millimeters and breaks at 397 grams, so it's much thinner, but also weaker than the average 8/0 thread.
7) Roman Moser Power Silk is GSP and is only 0.033 millimeters, but holds more than a kilo like Veevus' polyester thread, so it's also much thinner, but significantly stronger than the average.
And the Denier measure for these 8/0 threads will not make you wiser. They should be near identical if they were to be generally helpful, but vary from 55 Denier to 150, so a factor three between the "thinnest" and the "thickest", which are nowhere near being three times thinner or thicker than each other.
They should be near identical,
but vary from 55 Denier to 150
The 8/0 threads are in other words very different and in no way comparable, having great variation in diameter and even larger variation in breaking strength. Of course you can add to that the other properties of the thread: coarseness, ability to flatten, waxed/unwaxed and more.
To the average fly-tyer one 8/0 thread will be assumed identical to the other, but as you can see that isn't the case: diameter varies greatly and strength and physical properties depend on the material and the way the thread is made. Notice that the first threads are all polyester and almost homogenous regarding thickness, but when we include nylon, not to mention GSP, the variation is colossal.
This little table shows that essentially neither the aught system nor the Denier specification is any good for indicating the properties of a fly tying thread. You learn nothing about its thickness or breaking strength from either of these numbers - and of course absolutely nothing about the nature of the thread.

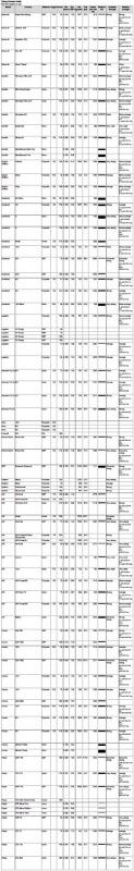

8/0 tying thread table
Click the headers to sort.
|Montana Fly Co||8/0||Nylon||72||0.036||397|
|Petitjean||Split Second Thread|
|Roman Moser||Power Silk 10/0 (fine) Dyneema Thread||GSP||55||0.033||1077|
|Semperfli||8/0 Tying Thread||Polyester|
See the full table with more than 90 threads here, and if you want to be really nerdy, you can see some scatter charts that show correlation (or rather: lack of same) between thread diameters, deniers and breaking strengths even between threads from the same manufacturer or threads made from the same material.
I have been unable to find any references to the physical aspects of the aught "measurement", which in other words fail pretty miserably as a specification, not to mention as a standard. It is - as we have seen above - nothing that even remotely can be called a standard or even a useful specification.
"So", you say, "Simply use Denier and the matter is solved!"
Unfortunately not. Some manufacturers like Veevus won't specify Denier for their threads. (the number for Veevus above come from another source).
The 8/0 threads listed also vary from 55 to 150 Denier. Now, there's nothing wrong with that and it might be very accurate. Remember that Denier is linear weight, in other words weight per length of the thread, so the Deniers just tell us that these threads have very different weights per length.
But compare the Bennechi, Griffith and UNI, all basically the same diameter. They are 150, 108 and 72 Denier respectively! How can I as a fly-tyer use that for anything? It's simply confusing. In another way than the aught system, sure, but still confusing.
And like the aught system, it's insufficient to properly specify the physical properties of the thread.
And like the aught system, it's insufficient to properly specify the physical properties of the thread.
Twisting and turning
Other aspects of the thread can also be important.
Material of course, where polyester is the most common, nylon also quite common and GSP (Gel Spun Polyethylene) has become common the latest years. You will also find real silk as well as Kevlar. Each has its benefits and drawbacks, but while polyester and nylon are rarely specified, GSP almost always is and silk as well as Kevlar always is.
The different materials have fundamentally different properties, like stretch and smoothness. Nylon is pretty elastic and has up to 25% stretch, polyester is less stretchy with about 15%, and GSP is very numb with just 3% stretch. Polyester is quite rough while nylon and silk is smoother. GSP is very smooth while Kevlar is smooth, but has a special bite because of the surface of the fiber. This has great influence on the tying, and is one of the reasons than many tyers wax their threads or buy waxed threads, because it increases bite and eases the tying.
Add to that the production method or thread type of which single filament (mono), simple twist, bonded, spun and rope types are just some. Threads can be made in many ways, filaments spun and fused in many ways, and each way produces a thread significantly different from the other.
This is very rarely specified by the manufacturers even though it can be quite important for the tyer. If you like to split dub, some threads are useless because they can't be separated to open to the dubbing. If you like to flatten thread to avoid bulk, some threads flatten really well while others are more rope like and unwilling to flatten.
As noted elsewhere I bought myself a micrometer and measured a bunch of threads. I knew that there would be some variation, but for some threads it was pretty large - up to 20 and 30% over even short stretches of thread like a few inches. It's usually not a big issue when you tie, but for the average and weaker threads it can mean that you have parts of the thread that are significantly weaker than the rest.
Thread diameter also varies depending on the twist. As most tyers know, you can untwist and flatten many threads, and while they do become wider on one side they become significantly thinner when the filaments become more parallel.
What will work
The only physical measurements, which are interesting for tying threads, is diameter and breaking strength. Fishing line manufacturers have found that out decades ago, and all their spools are clearly labeled with thickness in millimeters and/or inches and test (breaking strength) in kilos and/or lbs. And that goes for nylon and fluorocarbon as well as different spun and fused lines, which are fundamentally different from nylon in material and production method. Still these lines are easily comparable thanks to two simple numbers.
How hard can it be?
It's a very simple thing for the tying-thread manufacturers to measure thickness and test, and would make selecting a tying thread so much easier.
If they added material and thread type or production method to the labels, it would be a fly-tyer's Nirvana!
Simple, uniform, standardized and comparable.
Manufacturers and spoolers of fly-tying threads, put this on the label:
- Thickness in millimeters and inches
- Breaking strength in grams and ounces
- Material (Polyester, Nylon, GSP etc.)
- Thread type: monofilament, twisted, spun, braided or whatnot
But that's probably way too much to ask...
How hard can it be?
Well, if you are expecting me to tell what's the best thread on the market, you will be disappointed. That's like asking me what's the best rod... are you fishing #28 nymphs on a small stream, salmon in a rough river or tarpon in the tropics? Even knowing this, I'd have a hard time recommending a certain rod for you.
Same thing with thread.
The ones labelled "Very weak" in my table might make you shun away from them, thinking that they will break all the time. Sure they are more fragile, but if you are tying those small flies they might work for you. But if you look for thread for small flies, the table also tells you that other threads might be worth looking into, like the thinnest GSP threads, which are all thin and strong, or the thin polyester threads from several manufacturers, which are both thin and pretty strong without being as smooth as the GSP.
In the other end of the scale a thread that's more than 3-5 hundredth of an inch thick like the UNI Biglfy or the Dyneema might scare you off for being thick and clumsy. But if you want practically unbreakable thread for tying big flies, 4-6 lbs breaking strengths might be just your thing in spite of the bulk.
Finding your thread
This article and the table enables you to find a thread that suits your needs based on diameter and breaking strength where it's available and also enable you to compare threads which are usually difficult to compare.
An example: I really like the Gudebrod 8/0 polyester thread. Unfortunately Gudebrod is in limbo, and their threads very difficult to find. But looking at the table tells me that Griffiths Sheer, Veevus 12/0 and 14/0 as well as Bennechi 12/0 and Lagartun 150 Denier, all polyester threads, are the same diameter, much the same type of threads and both Veevus 12/0 and Lagartun 150 Denier are actually stronger than the Gudebrod, so they are very good alternatives. My empiric findings have already confirmed this, because for a long time my favorite thread has been Veevus 12/0, found simply by tying with it and liking it.
Links to thread manufacturers
Most of the thread manufacturers have underwhelming web sites - to say it nicely. Very few have well ordered, systematic records of all products online.
Danville Chenille Company Inc.
Montana Fly Company has very little info on its tying threads
Lagartun and Giorgio Benecchi don't seem to have own web sites.
Gudebrod has closed its thread production.
A lot of the basic information for this article is based on work done by US fly-tyer Chris Helm, the former owner of Whitetail Fly Tieing where his thorough coverage of tying thread is still found and kept updated by the new owners. Chris has written about thread online and in magazines, and his articles "The Introduction of Denier" and "Using Denier to Standardize Fly Tying Thread" are considered a basic work with regards to using Denier in specifying fly-tying threads.
Steven H. McGarthwaite has also written a very thorough article on fly-tying thread on FlyAnglers Online.
The article "Hanging by a thread" by Dr Paul Davis is also a very thorough coverage of threads, with exact measurements of a large number of threads. Some of the data in the present are taken from Paul's article. You will find Paul's shop on flytyingshop.co.uk.
Paul Marriner's "How to Choose & Use Fly-tying Thread" is a small booklet with information on selecting and using tying thread. It's made for the manufacturer UNI Products and mainly covers their threads.
In the book "Tying Small Flies" by by Ed Engle there's also a short section on tying thread and the aught system, and the author comes the the same conclusion that I do: the system is pretty much useless for comparing threads between manufacturers.
The article "Thread Essentials" by Carol Laflin Ahles on sewing threads is actually very informative too. It concludes the same as this article, saying that there's no one standard for threads, but at the same time covers a lot of thread types and materials in detail, much of which is also applicable on fly-tying thread, which by sewing standards is generally very thin by the way.
Articles in this series
Work in progress
This article on tying threads and all the data that is part of it is work in progress and will be updated as soon as I get more or better information on the various threads.
If you have things to add, comments or corrections, feel free to contact me on firstname.lastname@example.org. You can also leave a comment to the article, and I will see it and respond if required.
I welcome contact from tying thread manufacturers with information, specifications, remarks or corrections - even criticism. The more the better!
